- Place of Origin: Ningbo
- Brand Name: helm tower
- Model Number: MCR03-D

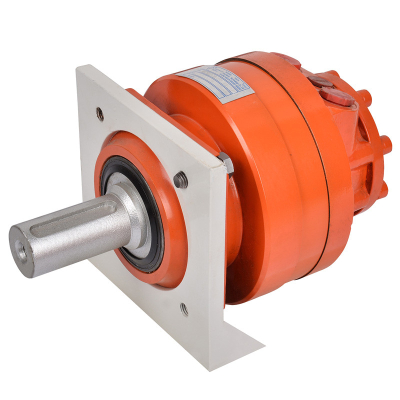

MCR03 D flange Hydraulic motor:
Radial piston type----MCR03D325L40Z32B2M01
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.
Applications:
Mining Machinery: Coal Winning Machine, Road Header, Scraper, Heavy Duty Handing Car, Coal Mine Drill.
Construction Machinery: Skid Steer Loader, Down-The-Hole Drill, Rotary Drill, Mini And Midi Excavators, Mixer Truck, Cutting Machine.
- Place of Origin: Ningbo
- Brand Name: helm tower
- Model Number: MCR03-D
Marine Machinery: Gantry Crane.
Type | MCR03-225 | MCR03-255 | MCR03-280 | MCR03-325 | MCR03-365 | MCR03-400 | ||||||
Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
255 | 125 | 255 | 125 | 280 | 140 | 325 | 160 | 365 | 180 | 400 | 200 | |
Max power(kw) | 18 | 12 | 18 | 12 | 18 | 12 | 22 | 14 | 22 | 14 | 22 | 14 |
Pressure discrepancy 10MPa Torque | 405 | 202 | 405 | 202 | 445 | 222 | 517 | 258 | 580 | 290 | 636 | 318 |
Rated compressor(MPa) | 25 | |||||||||||
Max Torque(N.m) (Full displacement) | 1386 | 1570 | 1760 | 1875 | 2105 | 2307 | ||||||
Max pressure(MPa) | 40 | 40 | 40 | 40 | 40 | 40 | ||||||
Rated speed (r/min) | 320 | 280 | 260 | 240 | 240 | 240 | ||||||
Speed range(r/min) | 10-400 | 10-360 | 10-330 | 10-310 | 10-280 | 10-260 | ||||||
Application | As revolution mechanism of hydraulic system, used for forklift, skid steer loaderskid steer loader, grab, metallurgy mine equipment, shipping port equipment, hydraclic winch, etc. |
