- Size: 0.1
- Place of Origin: Ningbo
- Brand Name: helm tower
- Model Number: MS11
- Weight: 114.000 kg

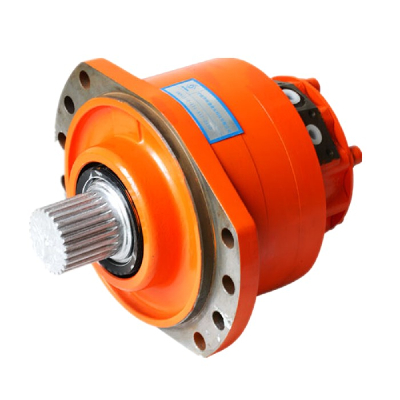

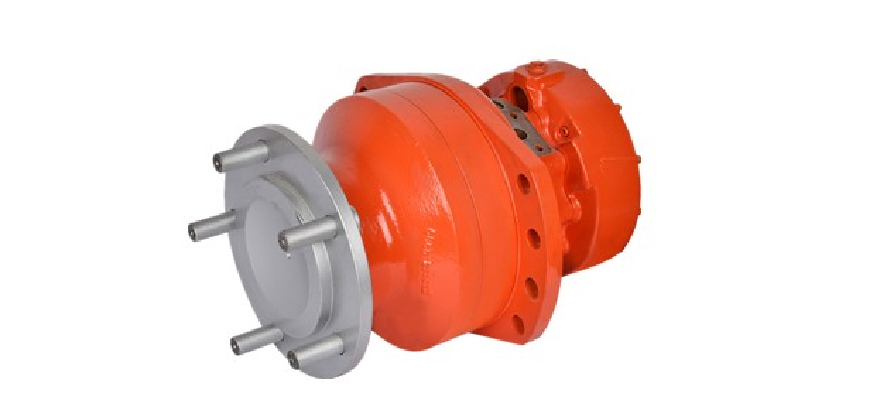

MS11 Hydraulic Piston Motor:
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds.
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
Applications: As revolution mechanism of hydraulic system, used for forklift, skid steer loader,
grab, metallurgy mine equipment, shipping port equipment, hydraclic winch, etc.
- Size: 0.1
- Place of Origin: Ningbo
- Brand Name: helm tower
- Model Number: MS11
- Weight: 114.000 kg
Type | MS11-8 | MS11-9 | MS11-0 | MS11-1 | MS11-2 | |||||
Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
837 | 418 | 943 | 471 | 1048 | 524 | 1147 | 573 | 1259 | 629 | |
Max power(kw) | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 |
Pressure discrepancy 10MPa Torque (N.m) | 1251 | 613 | 1409 | 391 | 1566 | 768 | 1714 | 840 | 1882 | 922 |
Rated torque(N.m) | 3127 | 3524 | 3916 | 4286 | 4704 | |||||
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
Rated speed(r/min) | 65 | 65 | 65 | 60 | 60 | |||||
Speed range(r/min) | 0-160 | 0-160 | 0-160 | 0-150 | 0-150 | |||||
