- Place of Origin: Ningbo
- Brand Name: helm tower
- Model Number: MS25

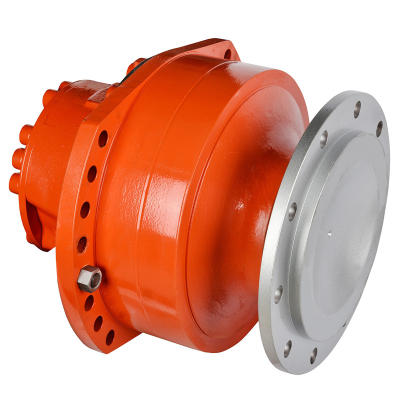

HMS25 Wheel Motor Applications:
Engineering Machinery： horizontal directional drill (HDD)，jumbolter，10T road roller（MK series ），Cement Concrete Mixing Machine，forging manipulators.
Marine Machinery：windlass，crane.
Mining Machinery：road header，heavy duty handling car，coal mine drill.
- Place of Origin: Ningbo
- Brand Name: helm tower
- Model Number: MS25
HMS25 series displacement map:
Displacement Group | MS25-8 | MS25-9 | MS25-0 | MS25-1 | MS25-2 | |||||
Displacement (ml/r) | Full displ | Half displ | Full displ | Half displ |
Full displ | Half displ | Full displ | Half displ | Full displ | Half displ |
2004 | 1002 | 2498 | 1249 | 2752 | 1376 | 3006 | 1503 | |||
Max power (kw) | 80 | 53 | 80 | 53 | 80 | 53 | 80 | 53 | ||
Theoric torque at 10MPa | 1995 | 1468 | 3733 | 1829 | 1829 | 2015 | 4493 | 2201 | ||
Rated torque (N. m) | 7488 | 9334 | 10283 | 11232 | ||||||
Rated pressure (MPa) | 25 | 25 | 25 | 25 | ||||||
Max pressure (MPa) | 40 | 40 | 35 | 35 | ||||||
Rated speed (r/min) | 50 | 50 | 45 | 45 | ||||||
Speed range (r/min) | 0-130 | 0-130 | 0-120 | 0-110 | ||||||
