Poclain MS25 Hydraulic Motor Repair Parts:
We produce all the parts of Poclain MS25 series

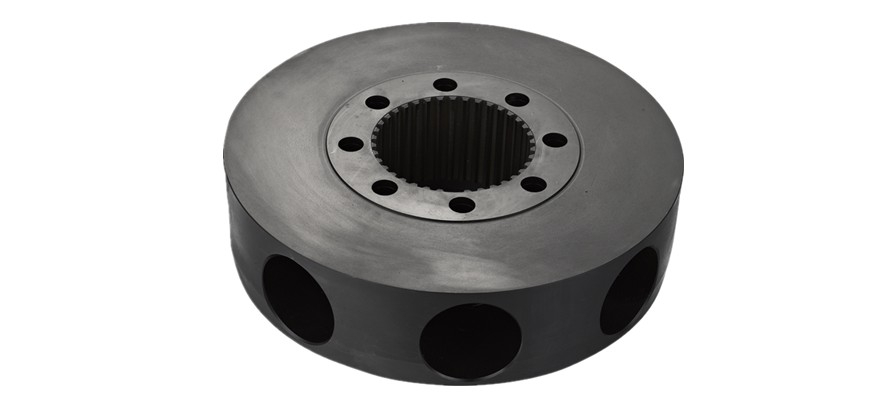

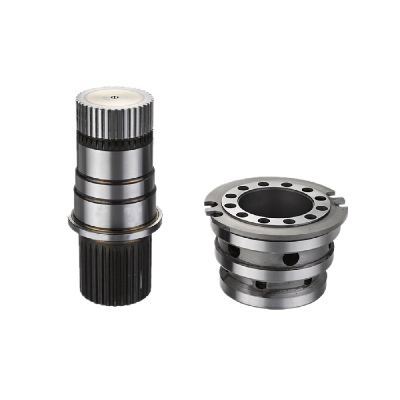

including drive shaft, front cover, bearing,stator, rotor, roller, bushing, plunger piston, distributor, rear cover, oil seal, brake cylinder, brake shaft, dynamic friction disc, static friction disc, brake plunger, cover plate , seal kits, rotor ass'y, clip ring etc...
- Size: 0.03
- Place of Origin: Ningbo
- Brand Name: helm tower
- Model Number: MS25
- Weight: 73.000 kg
Poclain MS25 Hydraulic Motor Spare Parts Features:
Poclain MS25 Hydraulic Motor Spare Parts Technical Data:
HMS25
Displacement Group | 8 | 0 | 1 | 2 |
Displacement (ml/r) | 2004 | 2498 | 2752 | 3006 |
Theoretical Torque at 10Mpa (N.m) | 3186 | 3972 | 4376 | 4780 |
Rated Speed (r/min) | 100 | 80 | 80 | 63 |
Rated Pressure (Mpa) | 25 | 25 | 25 | 25 |
Rated Torque (N.m) | 6550 | 8200 | 9000 | 9850 |
Max. Pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
Max. Torque (N.m) | 8100 | 10100 | 11150 | 12150 |
Speed Range (r/min) | 0-125 | 0-125 | 0-100 | 0-100 |
Max. Power (kw) | Standard displacement is 90KW,variable displacement priority rotation 60KW,no priority is 45KW | |||
